Announcements
Today (2020-10-04), we are publicly announcing the LCA2021 #swagbadge project and beginning the process of opening up our hardware and software development processes. The next couple of weeks will be a bit of a spectator sport whilst we put in place mechanisms for technical collaboration and contributions. We warmly welcome you to join in, get an early start on LCA2021 and enjoy the ride ! We'll be listening for questions and feedback sent to Twitter @swagbadge
Note: Whilst this project is supported by LCA2021, the OHMC team are not an official part of the LCA2021 organizing committee. Of course, we'll be in close communication with them. Also, this project will be covered by a Code Of Conduct (perhaps with some hardware hacking caveats). The OHMC team supports and encourages inclusion and diversity in hardware / software hacking, please help us do better !

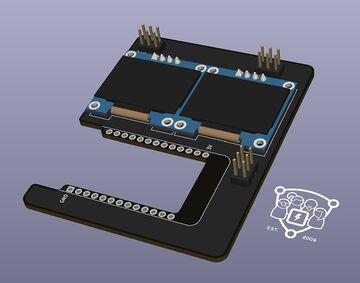

Recent 3D render 2020-09-30
A limited number of LCA2021 Swag Badge electronic badges will be produced for the on-line LCA2021 conference, which will be distributed to conference attendees. The LCA2021 Swag Badge is being specially developed and tailored for the conference.
- Note 0: This is just our current understanding of how the LCA2021 #swagbadge will be made available ... and is subject to change by LCA2021 organizing committee
- Note 1: The #swagbadge will be only available to Australian participants, due to the cost and delay of shipping internationally
- Note 2: If you are outside of Australia or miss out on a #swagbadge, then you might want to seriously consider acquiring a Dagbadge
- Note 3: The Open Hardware Miniconf is ON! Submit your talk proposals today. Deadline is Dec 18th.
No ordinary conference badge, this one is full of extensible, open hardware, ready to be loaded up with whatever software and custom hardware add-ons takes your fancy !
The Open Hardware Mini-Conference (OHMC) team are putting together a badge that will be:
- Approachable for newcomers, e.g runs Python and doesn't require any special IDE (for embedded device development)
- Custom-designed, super slick PCB
- Powered by an ESP32 which gives you Wi-Fi and Bluetooth connectivity
- Not one, but two delightful OLED screens
- ... which double as pressable buttons
- Ready for development with the latest microPython installed
- Supported by an open-sourced embedded network framework, the Aiko Engine for microPython
- With a number of SAO connectors so you can extend and add on your own hardware components
We aim to post the #swagbadges prior to Christmas so they will be available before on-line LCA2021 begins.
But wait, there's more ! In the spirit of LCA, we want the capabilities of the badge to be truly open. We'll be following up with more information about how you can join in to build out ideas for doing wonderful, magnificent, incredible... stuff ... <your idea here> ... using the SAO connectors.
Follow along and join in with the OHMC team as we prepare, plan, design and build your badges. We'll be posting regular updates here on this Wiki.

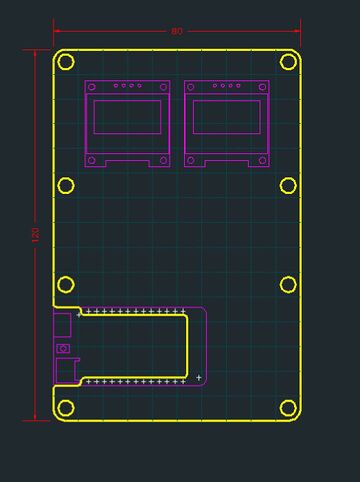

Mechanical layout 2020-09-30
Safety precautions we have provided
- When using any hardware ordered off the internet, you can't be quite certain what software might be present on it. Before shipping these badges to you, we reflashed a fresh copy of MicroPython onto the Lolin32.
- The framework running on the badge is Aiko, which is open source.
- The software on the badge is available on the CCHS repository, also all open source.
- The badges are designed to communicate over MQTT - a lightweight standard for messaging on IoT devices, but we are aware of privacy considerations: you don't want anybody able to control your badge from afar. The swagbadge protocol provides support for encrypted messages.
